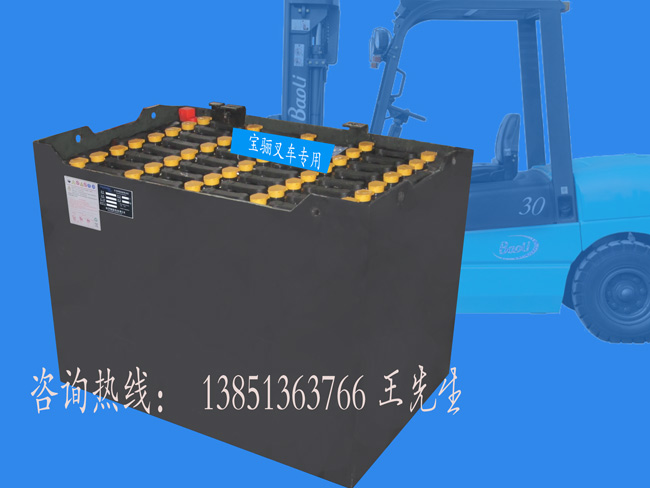

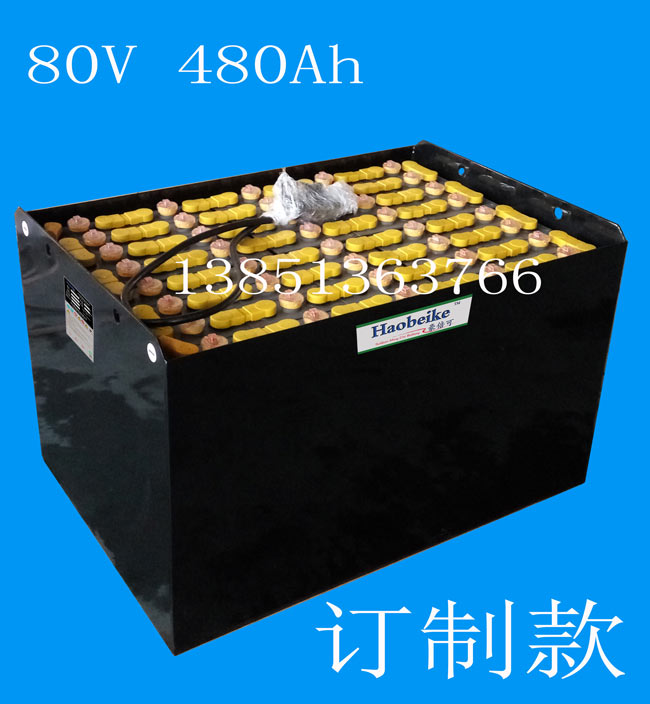

林德R16 48v560ah蓄電池 Haobeike 豪倍可蓄電池 英標、
Haobeike 豪倍可蓄電池 英標、德標、 國標蓄電池 宿遷明馳蓄電池有限公司供應 聯系電話:13851363766 13641520788 王先生 型號 額定容量 overall dimensions Reference weight(kg) 備注 Type 5hr.Capacity 長...- 詳細介紹
林德R16 48v560ah蓄電池 Haobeike 豪倍可蓄電池 英標、德標、 國標蓄電池系列
宿遷明馳蓄電池有限公司供應
關于質保:本款叉車電池質保期為12/15個月可選 。
聯系電話:13851363766 13641520788
王先生
宿遷明馳蓄電池有限公司供應
關于質保:本款叉車電池質保期為12/15個月可選 。
聯系電話:13851363766 13641520788
王先生
公司主要生產:國標DIN 英國標準VBS 158mm系列鉛酸蓄電池,德國標準PZS 198mm系列鉛酸蓄電池,適用于電動叉車、地鐵隧道、叉車蓄蓄電池、牽引車蓄電池、觀光旅游車蓄電池、高爾夫車蓄電池、電動旅游車蓄電池等。
可配套:
林德叉車安徽合力 豐田 杭叉股份 無錫大隆 浙江美科斯·廈門廈工·山推··凱傲寶驪·江淮重工叉車(JAC)·科朗(Crown)·上海龍工(Longgong)·諾力叉車(NOBLIFT)·力至優·永恒力叉車(Jungh ·浙江佳力叉車(JIALI)·靖江叉車(JJCC)·青島臺勵福·比亞迪叉車·中聯重科·西林叉車(XILIN)
·現代·TCM·柳工·上海海斯特·斗山(煙臺)·大連叉車(DALIAN)·杭州友佳叉車(FEELER)·浙江吉鑫祥(Goodsense·三菱、力達、斗山大宇 奇端中力搬易通mami 開普 好馬等國內外品牌叉車。
型號 | 額定容量 | overall dimensions | Reference weight(kg) | 備注 | ||||
Type | 5hr.Capacity | 長 | 寬 | 高 | 總高OH | 無液 | 帶液 | NOTE |
(Ah) | L | W | H | 焊接式/螺旋式 | Dry | Wet | ||
D-250 | 250 | 140 | 210 | 290 | 331 | 12.5 | 16.5 | |
D-250 | 250 | 131 | 207 | 290 | 331 | 12.5 | 16.5 | |
D-330 | 330 | 136 | 179 | 407 | 448 | 15.5 | 22.5 | |
D-385 | 385 | 145 | 158 | 385 | 415/430 | 17 | 23.5 | |
D-395 | 395 | 136 | 179 | 40 | 448 | 18.5 | 24.5 | |
D-400 | 400 | 145 | 158 | 385 | 415/430 | 18 | 22.5 | * |
D-440B | 440 | 175 | 180 | 404 | 433/448 | 21 | 27 | ★ |
D-440 | 440 | 145 | 158 | 430 | 460/475 | 20.5 | 26.5 | * |
D-450 | 450 | 173 | 158 | 385 | 415/430 | 20.5 | 27.5 | * |
D-450S | 450S | 157 | 158 | 385 | 415/430 | 20.5 | 27.5 | * |
D-480 | 480 | 145 | 158 | 430 | 460/475 | 21.5 | 28.5 | * |
D-420 | 420 | 173 | 158 | 340 | 370/385 | 21.5 | 28.5 | * |
D-480 | 480 | 173 | 158 | 340 | 370/385 | 21.5 | 28.5 | * |
D-500 | 500 | 173 | 158 | 385 | 415/430 | 23 | 30.5 | ★ |
D-515 | 515 | 175 | 180 | 404 | 443/448 | 24 | 32.5 | ★ |
D-550 | 550 | 173 | 158 | 431 | 460/475 | 24.5 | 33 | ★ |
D-560 | 560 | 173 | 158 | 430 | 460/475 | 25 | 34 | ★ |
D-580 | 580 | 173 | 158 | 430 | 460/475 | 25.5 | 34.5 | ★ |
D-600 | 600 | 173 | 158 | 430 | 460/475 | 26 | 35 | ★ |
D-620 | 620 | 173 | 158 | 430 | 460/475 | 27 | 36.5 | ★ |
D-630 | 630 | 173 | 158 | 450 | 480/495 | 28 | 37.5 | ★ |
D-460 | 460 | 83 | 198 | 690 | 720 | 22 | 30 | |
TG450 | 450 | 260 | 195 | 340 | 410 | 27 | 35 | |
5VBS450 | 450 | 93 | 158 | 625 | 655 | 21 | 30 | ★ |
5VBS560 | 560 | 93 | 158 | 690 | 720 | 22 | 33.5 | ★ |
7VBS630 | 630 | 125 | 158 | 630 | 660 | 27 | 36 |
2VBS64 | 64 | 45 | 158 | 270 | 300 | 4.5 | 5.5 | |
3VBS96 | 96 | 61 | 158 | 270 | 300 | 5.5 | 7 | |
4VBS128 | 128 | 77 | 158 | 270 | 300 | 7 | 9 | |
5VBS160 | 160 | 89/93 | 158 | 270 | 300 | 8 | 10.5 | |
6VBS192 | 192 | 109 | 158 | 270 | 300 | 9.5 | 12.5 | * |
7VBS224 | 224 | 125 | 158 | 270 | 300 | 10.5 | 14 | * |
8VBS256 | 256 | 145 | 158 | 270 | 300 | 11.5 | 16 | * |
9VBS288 | 288 | 157 | 158 | 270 | 300 | 13 | 17.5 | * |
10VBS320 | 320 | 173 | 158 | 270 | 300 | 14 | 19.5 | * |
11VBS352 | 352 | 184 | 158 | 270 | 300 | 15.5 | 21 | ★ |
12VBS384 | 384 | 205 | 158 | 270 | 300 | 16.5 | 23 | ★ |
13VBS416 | 416 | 221 | 158 | 270 | 300 | 18 | 24.5 | ★ |
14VBS448 | 448 | 241 | 158 | 270 | 300 | 19 | 26.5 | ★ |
15VBS480 | 480 | 260 | 158 | 270 | 300 | 20.5 | 28.5 | ★ |
2VBS70 | 70 | 45 | 158 | 300 | 312 | 4.5 | 6 | |
3VBS105 | 105 | 61 | 158 | 300 | 312 | 6 | 7.5 | |
4VBS140 | 140 | 77 | 158 | 300 | 312 | 7 | 9.5 | |
5VBS175 | 175 | 89/93 | 158 | 300 | 312 | 8.5 | 11.5 | |
6VBS210 | 210 | 109 | 158 | 300 | 312 | 10 | 13.5 | * |
7VBS245 | 245 | 125 | 158 | 300 | 312 | 11 | 15 | * |
8VBS280 | 280 | 145 | 158 | 300 | 312 | 12.5 | 17 | * |
9VBS315 | 315 | 157 | 158 | 300 | 312 | 14 | 19 | * |
10VBS350 | 350 | 173 | 158 | 300 | 312 | 15 | 21 | * |
11VBS385 | 385 | 184 | 158 | 300 | 312 | 16.5 | 23 | ★ |
12VBS420 | 420 | 205 | 158 | 300 | 312 | 18 | 24.5 | ★ |
13VBS455 | 455 | 221 | 158 | 300 | 312 | 19.5 | 26.5 | ★ |
14VBS490 | 490 | 241 | 158 | 300 | 312 | 20.5 | 22.5 | ★ |
15VBS525 | 525 | 260 | 158 | 300 | 312 | 22 | 30.5 | ★ |
2VBS84 | 84 | 45 | 158 | 330 | 360 | 4.5 | 6.5 | |
3VBS126 | 126 | 61 | 158 | 330 | 360 | 6.5 | 9 | |
4VBS168 | 168 | 77 | 158 | 330 | 360 | 8.5 | 11 | |
5VBS210 | 210 | 89/93 | 158 | 330 | 360 | 10 | 13 | |
6VBS252 | 252 | 109 | 158 | 330 | 360 | 11.5 | 15.5 | * |
7VBS294 | 294 | 125 | 158 | 330 | 360 | 13 | 18 | * |
8VBS336 | 336 | 145 | 158 | 330 | 360 | 14.5 | 20 | * |
9VBS378 | 378 | 157 | 158 | 330 | 360 | 16 | 22 | * |
10VBS420 | 420 | 173 | 158 | 330 | 360 | 17.5 | 24 | * |
11VBS462 | 462 | 184 | 158 | 330 | 360 | 19.5 | 26.5 | ★ |
12VBS504 | 504 | 205 | 158 | 330 | 360 | 21 | 29 | ★ |
13VBS546 | 546 | 221 | 158 | 330 | 360 | 22.45 | 31 | ★ |
14VBS588 | 588 | 241 | 158 | 330 | 360 | 24 | 33.5 | ★ |
15VBS630 | 630 | 260 | 158 | 330 | 360 | 25.5 | 35.5 | ★ |
2VBS100 | 100 | 45 | 158 | 385 | 415 | 5 | 7 | |
3VBS150 | 150 | 61 | 158 | 385 | 415 | 7 | 9.5 | |
4VBS200 | 200 | 77 | 158 | 385 | 415 | 9 | 12.5 | |
5VBS250 | 250 | 89/93 | 158 | 385 | 415 | 10.5 | 15 | |
6VBS300 | 300 | 109 | 158 | 385 | 415 | 12.5 | 17.5 | * |
7VBS350 | 350 | 125 | 158 | 385 | 415 | 14.5 | 20 | * |
8VBS400 | 400 | 145 | 158 | 385 | 415 | 18.5 | 23.5 | * |
9VBS450 | 450 | 157 | 158 | 385 | 415 | 21 | 24 | * |
10VBS500 | 500 | 173 | 158 | 385 | 415 | 22.5 | 31.8 | * |
11VBS550 | 550 | 184 | 158 | 385 | 415 | 24.5 | 33 | ★ |
12VBS600 | 600 | 205 | 158 | 385 | 415 | 26.5 | 36 | ★ |
13VBS650 | 650 | 221 | 158 | 385 | 415 | 28.5 | 38.5 | ★ |
14BS700 | 700 | 241 | 158 | 385 | 415 | 30.5 | 41.5 | ★ |
15VBS750 | 750 | 260 | 158 | 385 | 415 | 32.5 | 44.5 | ★ |
2VBS110 | 110 | 45 | 158 | 400-430 | 430-460 | 6 | 7.5 | |
3VBS165 | 165 | 61 | 158 | 400-430 | 430-460 | 8 | 10.5 | |
4VBS220 | 220 | 77 | 158 | 400-430 | 430-460 | 9.5 | 13.5 | |
5VBS275 | 275 | 89/93 | 158 | 400-430 | 430-460 | 13.5 | 18.5 | |
6VBS330 | 330 | 109 | 158 | 400-430 | 430-460 | 15.5 | 20.5 | * |
7VBS385 | 385 | 125 | 158 | 400-430 | 430-460 | 15.5 | 22 | * |
8VBS440 | 440 | 145 | 158 | 400-430 | 430-460 | 21.5 | 28.5 | * |
9VBS495 | 495 | 157 | 158 | 400-430 | 430-460 | 24 | 31.5 | * |
10VBS550 | 550 | 173 | 158 | 400-430 | 430-460 | 26 | 34 | * |
11VBS605 | 605 | 184 | 158 | 400-430 | 430-460 | 29 | 38.5 | ★ |
12VBS660 | 660 | 205 | 158 | 400-430 | 430-460 | 31.5 | 41.5 | ★ |
13VBS715 | 715 | 221 | 158 | 400-430 | 430-460 | 34 | 44.5 | ★ |
14VBS770 | 770 | 241 | 158 | 400-430 | 430-460 | 36.5 | 48 | ★ |
15VBS825 | 825 | 260 | 158 | 400-430 | 430-460 | 39 | 51.5 | ★ |
2VBS120 | 120 | 45 | 158 | 430 | 460 | 6.5 | 12 | |
3VBS180 | 180 | 61 | 158 | 430 | 460 | 8.5 | 14 | |
4VBS240 | 240 | 77 | 158 | 430 | 460 | 10.5 | 16.5 | |
5VBS300 | 300 | 89/93 | 158 | 430 | 460 | 13 | 17 | |
6VBS360 | 360 | 109 | 158 | 430 | 460 | 15 | 18.5 | * |
7VBS420 | 420 | 125 | 158 | 430 | 460 | 17 | 18 | * |
8VBS480 | 480 | 145 | 158 | 430 | 460 | 21.5 | 22.5 | * |
9VBS540 | 540 | 157 | 158 | 430 | 460 | 24.5 | 33 | * |
10VBS600 | 600 | 173 | 158 | 430 | 460 | 27 | 35 | * |
11VBS660 | 660 | 184 | 158 | 430 | 460 | 29.5 | 40 | ★ |
12VBS720 | 720 | 205 | 158 | 430 | 460 | 32 | 43.5 | ★ |
13VBS780 | 780 | 221 | 158 | 430 | 460 | 34.4 | 47 | ★ |
14VBS840 | 840 | 241 | 158 | 430 | 460 | 36 | 49 | ★ |
15VBS900 | 900 | 260 | 158 | 430 | 460 | 39.5 | 53 | ★ |
2VBS130 | 130 | 45 | 158 | 450 | 480 | 7 | 9 | |
3VBS195 | 195 | 61 | 158 | 450 | 480 | 9.5 | 12.5 | |
4VBS260 | 260 | 77 | 158 | 450 | 480 | 11.5 | 15.5 | |
5VBS325 | 325 | 89/93 | 158 | 450 | 480 | 14 | 19 | |
6VBS390 | 390 | 109 | 158 | 450 | 480 | 17 | 23 | * |
7VBS455 | 455 | 125 | 158 | 450 | 480 | 18.5 | 27 | * |
8VBS520 | 520 | 145 | 158 | 450 | 480 | 21 | 29 | * |
9VBS585 | 585 | 157 | 158 | 450 | 480 | 23 | 32 | * |
10VBS650 | 650 | 173 | 158 | 450 | 480 | 25.5 | 35 | * |
11VBS715 | 715 | 184 | 158 | 450 | 480 | 27.5 | 38.5 | ★ |
12VBS780 | 780 | 205 | 158 | 450 | 480 | 30 | 41.5 | ★ |
13VBS845 | 845 | 221 | 158 | 450 | 480 | 32.5 | 45 | ★ |
14VBS910 | 910 | 241 | 158 | 450 | 480 | 38 | 52 | ★ |
15VBS975 | 975 | 260 | 158 | 450 | 480 | 40 | 55 | ★ |
2VBS140 | 140 | 45 | 158 | 490 | 520 | 7 | 9.5 | |
3VBS210 | 210 | 61 | 158 | 490 | 520 | 10 | 13.5 | |
4VBS280 | 280 | 77 | 158 | 490 | 520 | 12.5 | 16.5 | |
5VBS350 | 350 | 89/93 | 158 | 490 | 520 | 15 | 20 | |
6VBS420 | 420 | 109 | 158 | 490 | 520 | 18 | 24 | * |
7VBS490 | 490 | 125 | 158 | 490 | 520 | 19.5 | 27 | * |
8VBS560 | 560 | 145 | 158 | 490 | 520 | 21.5 | 30 | * |
9VBS630 | 630 | 157 | 158 | 490 | 520 | 26 | 36 | * |
10VBS700 | 700 | 173 | 158 | 490 | 520 | 29 | 40 | * |
11VBS770 | 770 | 184 | 158 | 490 | 520 | 32 | 44 | ★ |
12VBS840 | 840 | 205 | 158 | 490 | 520 | 35 | 48 | ★ |
13VBS910 | 910 | 205 | 158 | 490 | 520 | 38 | 52 | ★ |
14VBS980 | 980 | 241 | 158 | 490 | 520 | 41 | 56 | ★ |
15VBS1050 | 1050 | 260 | 158 | 490 | 520 | 44 | 60 | ★ |
2VBS150 | 150 | 45 | 158 | 510 | 540 | 7.5 | 10 | |
3VBS225 | 225 | 61 | 158 | 510 | 540 | 10.5 | 14 | |
4VBS300 | 300 | 77 | 158 | 510 | 540 | 13 | 17.5 | |
5VBS375 | 375 | 89/93 | 158 | 510 | 540 | 15.5 | 21.5 | |
6VBS450 | 450 | 109 | 158 | 510 | 540 | 18 | 25 | * |
7VBS525 | 525 | 125 | 158 | 510 | 540 | 22.5 | 29 | * |
8VBS600 | 600 | 145 | 158 | 510 | 540 | 24 | 32.5 | * |
9VBS675 | 675 | 157 | 158 | 510 | 540 | 27.5 | 38 | * |
10VBS750 | 750 | 173 | 158 | 510 | 540 | 30.5 | 42 | * |
11VBS825 | 825 | 184 | 158 | 510 | 540 | 33.5 | 46.5 | ★ |
12VBS900 | 900 | 205 | 158 | 510 | 540 | 36.5 | 51 | ★ |
13VBS975 | 975 | 221 | 158 | 510 | 540 | 39.5 | 55 | ★ |
14VBS1050 | 1050 | 241 | 158 | 510 | 540 | 42.5 | 58.5 | ★ |
15VBS1125 | 1125 | 260 | 158 | 510 | 540 | 45.5 | 63.5 | ★ |
2VBS160 | 160 | 45 | 158 | 530 | 560 | 8.5 | 11 | |
3VBS240 | 240 | 61 | 158 | 530 | 560 | 11 | 14.5 | |
4VBS320 | 320 | 77 | 158 | 530 | 560 | 14 | 19 | |
5VBS400 | 400 | 89/93 | 158 | 530 | 560 | 18.5 | 24.5 | |
6VBS480 | 480 | 109 | 158 | 530 | 560 | 22 | 29 | * |
7VBS560 | 560 | 125 | 158 | 530 | 560 | 26 | 34 | * |
8VBS640 | 640 | 145 | 158 | 530 | 560 | 30 | 38 | * |
9VBS720 | 720 | 157 | 158 | 530 | 560 | 33.5 | 43 | * |
10VBS800 | 800 | 173 | 158 | 530 | 560 | 37.5 | 47 | * |
11VBS880 | 880 | 184 | 158 | 530 | 560 | 41 | 52 | ★ |
12VBS960 | 960 | 205 | 158 | 530 | 560 | 44 | 57 | ★ |
13VBS1040 | 1040 | 221 | 158 | 530 | 560 | 47 | 62 | ★ |
14VBS1120 | 1120 | 241 | 158 | 530 | 560 | 51.5 | 67 | ★ |
15VBS1200 | 1200 | 260 | 158 | 530 | 560 | 55.5 | 72 | ★ |
2VBS180 | 180 | 45 | 158 | 630 | 660 | 9.5 | 12.5 | |
3VBS270 | 270 | 61 | 158 | 630 | 660 | 13 | 17 | |
4VBS360 | 360 | 77 | 158 | 630 | 660 | 17 | 22 | |
5VBS450 | 450 | 89/93 | 158 | 630 | 660 | 21 | 27 | |
6VBS540 | 540 | 109 | 158 | 630 | 660 | 25.5 | 33 | * |
7VBS630 | 630 | 125 | 158 | 630 | 660 | 27 | 36 | * |
8VBS720 | 720 | 145 | 158 | 630 | 660 | 33 | 43 | * |
9VBS810 | 810 | 157 | 158 | 630 | 660 | 37 | 48 | * |
10VBS900 | 900 | 173 | 158 | 630 | 660 | 41 | 53.5 | * |
11VBS990 | 990 | 184 | 158 | 630 | 660 | 45 | 59 | ★ |
12VBS1080 | 1080 | 205 | 158 | 630 | 660 | 49 | 64.5 | ★ |
13VBS1170 | 1170 | 221 | 158 | 630 | 660 | 53 | 70 | ★ |
14VBS1260 | 1260 | 241 | 158 | 630 | 660 | 57 | 75 | ★ |
15VBS1350 | 1350 | 260 | 158 | 630 | 660 | 61 | 81 | ★ |
2VBS200 | 200 | 45 | 158 | 630-690 | 660-720 | 10 | 13.5 | |
3VBS300 | 300 | 61 | 158 | 630-690 | 660-720 | 13.5 | 18.5 | |
4VBS400 | 400 | 77 | 158 | 630-690 | 660-720 | 18.5 | 25 | |
5VBS500 | 500 | 89/93 | 158 | 630-690 | 660-720 | 21 | 29 | |
6VBS600 | 600 | 109 | 158 | 630-690 | 660-720 | 25 | 34.5 | * |
7VBS700 | 700 | 125 | 158 | 630-690 | 660-720 | 28.5 | 39.5 | * |
8VBS800 | 800 | 145 | 158 | 630-690 | 660-720 | 34.5 | 47 | * |
9VBS900 | 900 | 157 | 158 | 630-690 | 660-720 | 38.5 | 52.5 | * |
10VBS1000 | 1000 | 173 | 158 | 630-690 | 660-720 | 42.5 | 58.5 | * |
11VBS1100 | 1100 | 184 | 158 | 630-690 | 660-720 | 46.5 | 64 | ★ |
12VBS1200 | 1200 | 205 | 158 | 630-690 | 660-720 | 50.5 | 69.5 | ★ |
13VBS1300 | 1300 | 221 | 158 | 630-690 | 660-720 | 54.5 | 75 | ★ |
14VBS1400 | 1400 | 241 | 158 | 630-690 | 660-720 | 58.5 | 80.5 | ★ |
15VBS1500 | 1500 | 260 | 158 | 630-690 | 660-720 | 62.5 | 86 | ★ |
2VBS210 | 210 | 45 | 158 | 690 | 720 | 10 | 13.5 | |
3VBS315 | 315 | 61 | 158 | 690 | 720 | 13.5 | 18.5 | |
4VBS420 | 420 | 77 | 158 | 690 | 720 | 17.5 | 13.5 | |
5VBS525 | 525 | 89/93 | 158 | 690 | 720 | 21 | 28.5 | |
6VBS630 | 630 | 109 | 158 | 690 | 720 | 24.5 | 33.5 | |
7VBS735 | 735 | 125 | 158 | 690 | 720 | 28 | 38.5 | * |
8VBS840 | 840 | 145 | 158 | 690 | 720 | 37.5 | 43.5 | * |
9VBS945 | 945 | 157 | 158 | 690 | 720 | 35 | 49 | * |
10VBS1050 | 1050 | 173 | 158 | 690 | 720 | 39 | 54.5 | * |
11VBS1155 | 1155 | 184 | 158 | 690 | 720 | 42.5 | 59.5 | * |
12VBS1260 | 1260 | 205 | 158 | 690 | 720 | 46 | 64.5 | ★ |
13VBS1365 | 1365 | 221 | 158 | 690 | 720 | 49.5 | 69.5 | ★ |
14VBS1470 | 1470 | 241 | 158 | 690 | 720 | 53 | 74.5 | ★ |
15VBS1575 | 1575 | 260 | 158 | 690 | 720 | 56.5 | 79.5 | |
198MM | ||||||||
2PZS100 | 100 | 47 | 198 | 280 | 310 | 5.5 | 7.5 | |
3PZS150 | 150 | 65 | 198 | 280 | 310 | 8 | 10 | |
4PZS200 | 200 | 83 | 198 | 280 | 310 | 10 | 13 | |
5PZS250 | 250 | 101 | 198 | 280 | 310 | 12 | 15 | |
6PZS300 | 300 | 119 | 198 | 280 | 310 | 14 | 18.5 | |
7PZS350 | 350 | 137 | 198 | 280 | 310 | 16 | 21.5 | * |
8PZS400 | 400 | 155 | 198 | 280 | 310 | 18 | 24.5 | * |
9PZS450 | 450 | 173 | 198 | 280 | 310 | 20.5 | 27.5 | * |
10PZS500 | 500 | 191 | 198 | 280 | 310 | 22.5 | 30.5 | * |
11PZS550 | 550 | 209 | 198 | 280 | 310 | 24.5 | 33 | ★ |
12PZS600 | 600 | 227 | 198 | 280 | 310 | 26.5 | 36 | ★ |
2PZS110 | 110 | 47 | 198 | 330 | 360 | 6.5 | 8.5 | |
3PZS165 | 165 | 65 | 198 | 330 | 360 | 9 | 12 | |
4PZS220 | 220 | 83 | 198 | 330 | 360 | 11 | 15 | |
5PZS275 | 275 | 101 | 198 | 330 | 360 | 13.5 | 18.5 | |
6PZS330 | 330 | 119 | 198 | 330 | 360 | 15.5 | 21.5 | |
7PZS385 | 385 | 137 | 198 | 330 | 360 | 17.5 | 24.5 | * |
8PZS440 | 440 | 155 | 198 | 330 | 360 | 20 | 28 | * |
9PZS495 | 495 | 173 | 198 | 330 | 360 | 22 | 31 | * |
10PZS550 | 550 | 191 | 198 | 330 | 360 | 24.5 | 34.5 | * |
11PZS605 | 605 | 209 | 198 | 330 | 360 | 26.5 | 37.5 | ★ |
12PZS660 | 660 | 227 | 198 | 330 | 360 | 29 | 40.5 | ★ |
2PZS120 | 120 | 47 | 198 | 340 | 370 | 6.5 | 8.5 | |
3PZS180 | 180 | 65 | 198 | 340 | 370 | 9.5 | 12 | |
4PZS240 | 240 | 83 | 198 | 340 | 370 | 11.5 | 15.5 | |
5PZS300 | 300 | 101 | 198 | 340 | 370 | 14 | 19 | |
6PZS360 | 360 | 119 | 198 | 340 | 370 | 17 | 23 | |
7PZS420 | 420 | 137 | 198 | 340 | 370 | 18.5 | 25.5 | * |
8PZS480 | 480 | 155 | 198 | 340 | 370 | 21 | 29 | * |
9PZS540 | 540 | 173 | 198 | 340 | 370 | 23.5 | 32.5 | * |
10PZS600 | 600 | 191 | 198 | 340 | 370 | 26 | 36 | * |
11PZS660 | 660 | 209 | 198 | 340 | 370 | 28 | 39 | ★ |
12PZS720 | 720 | 227 | 198 | 340 | 370 | 30.5 | 42.5 | ★ |
2PZS140 | 140 | 47 | 198 | 400 | 430 | 8 | 11 | |
3PZS210 | 210 | 65 | 198 | 400 | 430 | 10.5 | 14 | |
4PZS280 | 280 | 83 | 198 | 400 | 430 | 13.5 | 18.5 | |
5PZS350 | 350 | 101 | 198 | 400 | 430 | 16 | 22.5 | |
6PZS420 | 420 | 119 | 198 | 400 | 430 | 19 | 26 | |
7PZS490 | 490 | 137 | 198 | 400 | 430 | 21.5 | 30 | * |
8PZS560 | 560 | 155 | 198 | 400 | 430 | 24.5 | 34 | * |
9PZS630 | 630 | 173 | 198 | 400 | 430 | 29 | 40 | * |
10PZS700 | 700 | 191 | 198 | 400 | 430 | 30 | 42 | * |
11PZS770 | 770 | 209 | 198 | 400 | 430 | 32.5 | 46 | ★ |
12PZS840 | 840 | 227 | 198 | 400 | 430 | 35 | 50 | ★ |
2PZS160 | 160 | 47 | 198 | 400-450 | 430-480 | 9 | 12 | |
3PZS240 | 240 | 65 | 198 | 400-450 | 430-480 | 12 | 16 | |
4PZS320 | 320 | 83 | 198 | 400-450 | 430-480 | 15 | 21 | |
5PZS400 | 400 | 101 | 198 | 400-450 | 430-480 | 18 | 25 | |
6PZS480 | 480 | 119 | 198 | 400-450 | 430-480 | 21 | 29.5 | |
7PZS560 | 560 | 137 | 198 | 400-450 | 430-480 | 24 | 34 | * |
8PZS640 | 640 | 155 | 198 | 400-450 | 430-480 | 27.5 | 38.5 | * |
9PZS720 | 720 | 173 | 198 | 400-450 | 430-480 | 30.5 | 43 | * |
10PZS800 | 800 | 191 | 198 | 400-450 | 430-480 | 33.5 | 47.5 | * |
11PZS880 | 880 | 209 | 198 | 400-450 | 430-480 | 36.5 | 52 | ★ |
12PZS960 | 960 | 227 | 198 | 400-450 | 430-480 | 39.5 | 56 | ★ |
2PZS180 | 180 | 47 | 198 | 470-530 | 500-560 | 10 | 13.5 | |
3PZS270 | 270 | 65 | 198 | 470-530 | 500-560 | 13.5 | 18.5 | |
4PZS360 | 360 | 83 | 198 | 470-530 | 500-560 | 17 | 23.5 | |
5PZS450 | 450 | 101 | 198 | 470-530 | 500-560 | 20.5 | 28.5 | |
6PZS540 | 540 | 119 | 198 | 470-530 | 500-560 | 23.5 | 33.5 | |
7PZS630 | 630 | 137 | 198 | 470-530 | 500-560 | 27 | 38.5 | * |
8PZS720 | 720 | 155 | 198 | 470-530 | 500-560 | 30.5 | 43.5 | * |
9PZS810 | 810 | 173 | 198 | 470-530 | 500-560 | 34 | 48.5 | * |
10PZS900 | 900 | 191 | 198 | 470-530 | 500-560 | 37.5 | 54 | * |
11PZS990 | 990 | 209 | 198 | 470-530 | 500-560 | 40.5 | 58.5 | ★ |
12PZS1080 | 1080 | 227 | 198 | 470-530 | 500-560 | 44.5 | 64 | ★ |
2PZS200 | 200 | 47 | 198 | 470-540 | 500-570 | 11 | 14.5 | |
3PZS300 | 300 | 65 | 198 | 470-540 | 500-570 | 14.5 | 20 | |
4PZS400 | 400 | 83 | 198 | 470-540 | 500-570 | 18.5 | 25.5 | |
5PZS500 | 500 | 101 | 198 | 470-540 | 500-570 | 22 | 31 | |
6PZS600 | 600 | 119 | 198 | 470-540 | 500-570 | 26 | 36.5 | |
7PZS700 | 700 | 137 | 198 | 470-540 | 500-570 | 29.5 | 42 | * |
8PZS800 | 800 | 155 | 198 | 470-540 | 500-570 | 33 | 47.5 | * |
9PZS900 | 900 | 173 | 198 | 470-540 | 500-570 | 37 | 53 | * |
10PZS1000 | 1000 | 191 | 198 | 470-540 | 500-570 | 40.5 | 58 | * |
11PZS1100 | 1100 | 209 | 198 | 470-540 | 500-570 | 45 | 64 | ★ |
12PZS1200 | 1200 | 227 | 198 | 470-540 | 500-570 | 48.5 | 69.5 | ★ |
2PZS210 | 210 | 47 | 198 | 500-570 | 530-600 | 11 | 14 | |
3PZS315 | 315 | 65 | 198 | 500-570 | 530-600 | 15 | 19.5 | |
4PZS420 | 420 | 83 | 198 | 500-570 | 530-600 | 18.5 | 25 | |
5PZS525 | 525 | 101 | 198 | 500-570 | 530-600 | 22.5 | 30.5 | |
6PZS630 | 630 | 119 | 198 | 500-570 | 530-600 | 26.5 | 36 | |
7PZS735 | 735 | 137 | 198 | 500-570 | 530-600 | 30.5 | 41.5 | * |
8PZS840 | 840 | 155 | 198 | 500-570 | 530-600 | 34.5 | 47 | * |
9PZS945 | 945 | 173 | 198 | 500-570 | 530-600 | 38 | 52 | * |
10PZS1050 | 1050 | 191 | 198 | 500-570 | 530-600 | 42.5 | 58 | * |
11PZS1155 | 1155 | 209 | 198 | 500-570 | 530-600 | 46.5 | 63.5 | ★ |
12PZS1260 | 1260 | 227 | 198 | 500-570 | 530-600 | 50.5 | 69 | ★ |
2PZS220 | 220 | 47 | 198 | 540-570 | 570-600 | 11.5 | 14.5 | |
3PZS330 | 330 | 65 | 198 | 540-570 | 570-600 | 13.5 | 20.5 | |
4PZS440 | 440 | 83 | 198 | 540-570 | 570-600 | 19.5 | 26 | |
5PZS550 | 550 | 101 | 198 | 540-570 | 570-600 | 23.5 | 31.5 | |
6PZS660 | 660 | 119 | 198 | 540-570 | 570-600 | 27.5 | 37.5 | |
7PZS770 | 770 | 137 | 198 | 540-570 | 570-600 | 31.5 | 43 | * |
8PZS880 | 880 | 155 | 198 | 540-570 | 570-600 | 36.5 | 49 | * |
9PZS990 | 990 | 173 | 198 | 540-570 | 570-600 | 39.5 | 54.5 | * |
10PZS1100 | 1100 | 191 | 198 | 540-570 | 570-600 | 44 | 61 | * |
11PZS1210 | 1210 | 209 | 198 | 540-570 | 570-600 | 48.5 | 66.5 | ★ |
12PZS1320 | 1320 | 227 | 198 | 540-570 | 570-600 | 52.5 | 72 | ★ |
2PZS230 | 230 | 47 | 198 | 545 | 575 | 11.5 | 15 | |
3PZS345 | 345 | 65 | 198 | 545 | 575 | 16 | 21 | |
4PZS460 | 460 | 83 | 198 | 545 | 575 | 20 | 26.5 | |
5PZS575 | 575 | 101 | 198 | 545 | 575 | 23.5 | 31.5 | |
6PZS690 | 690 | 119 | 198 | 545 | 575 | 28.5 | 38.5 | |
7PZS805 | 805 | 137 | 198 | 545 | 575 | 33 | 44.5 | * |
8PZS920 | 920 | 155 | 198 | 545 | 575 | 37 | 50 | * |
9PZS1035 | 1035 | 173 | 198 | 545 | 575 | 41.5 | 56.5 | * |
10PZS1150 | 1150 | 191 | 198 | 545 | 575 | 46 | 62.5 | * |
11PZS1265 | 1265 | 209 | 198 | 545 | 575 | 50 | 68 | ★ |
12PZS1380 | 1380 | 227 | 198 | 545 | 575 | 54.5 | 74 | ★ |
2PZS240 | 240 | 47 | 198 | 580-640 | 610-670 | 12.5 | 17 | |
3PZS360 | 360 | 65 | 198 | 580-640 | 610-670 | 17 | 23.5 | |
4PZS480 | 480 | 83 | 198 | 580-640 | 610-670 | 21.5 | 30 | |
5PZS600 | 600 | 101 | 198 | 580-640 | 610-670 | 26 | 36.5 | |
6PZS720 | 720 | 119 | 198 | 580-640 | 610-670 | 30 | 43.5 | |
7PZS840 | 840 | 137 | 198 | 580-640 | 610-670 | 34.5 | 50 | * |
8PZS960 | 960 | 155 | 198 | 580-640 | 610-670 | 39 | 56 | * |
9PZS1080 | 1080 | 173 | 198 | 580-640 | 610-670 | 44 | 63 | * |
10PZS1200 | 1200 | 191 | 198 | 580-640 | 610-670 | 48 | 70 | * |
11PZS1320 | 1320 | 209 | 198 | 580-640 | 610-670 | 52.5 | 76.5 | ★ |
12PZS1440 | 1440 | 227 | 198 | 580-640 | 610-670 | 57 | 83 | ★ |
2PZS250 | 250 | 47 | 198 | 580-640 | 610-670 | 12.5 | 16 | |
3PZS375 | 375 | 65 | 198 | 580-640 | 610-670 | 17 | 22.5 | |
4PZS500 | 500 | 83 | 198 | 580-640 | 610-670 | 21.5 | 28.5 | |
5PZS625 | 625 | 101 | 198 | 580-640 | 610-670 | 26 | 35 | |
6PZS750 | 750 | 119 | 198 | 580-640 | 610-670 | 31 | 41 | |
7PZS875 | 875 | 137 | 198 | 580-640 | 610-670 | 35.5 | 47 | * |
8PZS1000 | 1000 | 155 | 198 | 580-640 | 610-670 | 40 | 53.5 | * |
9PZS1125 | 1125 | 173 | 198 | 580-640 | 610-670 | 45 | 59.5 | * |
10PZS1250 | 1250 | 191 | 198 | 580-640 | 610-670 | 49.5 | 64 | * |
11PZS1375 | 1375 | 209 | 198 | 580-640 | 610-670 | 54 | 73 | ★ |
12PZS1500 | 1500 | 227 | 198 | 580-640 | 610-670 | 58.5 | 79 | ★ |
2PZS260 | 260 | 47 | 198 | 600-660 | 630-690 | 13.5 | 18 | |
3PZS390 | 390 | 65 | 198 | 600-660 | 630-690 | 18 | 24.5 | |
4PZS520 | 520 | 83 | 198 | 600-660 | 630-690 | 23 | 31.5 | |
5PZS650 | 650 | 101 | 198 | 600-660 | 630-690 | 27.5 | 38.5 | |
6PZS780 | 780 | 119 | 198 | 600-660 | 630-690 | 32 | 45.5 | |
7PZS910 | 910 | 137 | 198 | 600-660 | 630-690 | 37 | 52.5 | * |
8PZS1040 | 1040 | 155 | 198 | 600-660 | 630-690 | 42 | 59.5 | * |
9PZS1170 | 1170 | 173 | 198 | 600-660 | 630-690 | 47 | 66.5 | * |
10PZS1300 | 1300 | 191 | 198 | 600-660 | 630-690 | 52.5 | 73.5 | * |
11PZS1430 | 1430 | 209 | 198 | 600-660 | 630-690 | 56.5 | 80.5 | ★ |
12PZS1560 | 1560 | 227 | 198 | 600-660 | 630-690 | 61 | 87.5 | ★ |
2PZS280 | 280 | 47 | 198 | 690 | 720 | 14 | 18.5 | |
3PZS420 | 420 | 65 | 198 | 690 | 720 | 19 | 25.5 | |
4PZS560 | 560 | 83 | 198 | 690 | 720 | 24 | 32.5 | |
5PZS700 | 700 | 101 | 198 | 690 | 720 | 29 | 40 | |
6PZS840 | 840 | 119 | 198 | 690 | 720 | 34 | 47 | |
7PZS980 | 980 | 137 | 198 | 690 | 720 | 39.5 | 54.5 | * |
8PZS1120 | 1120 | 155 | 198 | 690 | 720 | 45 | 62 | * |
9PZS1260 | 1260 | 173 | 198 | 690 | 720 | 50 | 69.5 | * |
10PZS1400 | 1400 | 191 | 198 | 690 | 720 | 55 | 76.5 | * |
11PZS1540 | 1540 | 209 | 198 | 690 | 720 | 60.5 | 84 | ★ |
12PZS1680 | 1680 | 227 | 198 | 690 | 720 | 65.5 | 90.5 | ★ |
2PZS310 | 310 | 47 | 198 | 720 | 750 | 15 | 19.5 | |
3PZS465 | 465 | 65 | 198 | 720 | 750 | 20.5 | 27.5 | |
4PZS620 | 620 | 83 | 198 | 720 | 750 | 26.5 | 35 | |
5PZS775 | 775 | 101 | 198 | 720 | 750 | 32 | 43 | |
6PZS930 | 930 | 119 | 198 | 720 | 750 | 37.5 | 50.5 | |
7PZS1085 | 1085 | 137 | 198 | 720 | 750 | 43.5 | 59 | * |
8PZS1240 | 1240 | 155 | 198 | 720 | 750 | 49 | 66.5 | * |
9PZS1395 | 1395 | 173 | 198 | 720 | 750 | 54.5 | 74.5 | * |
10PZS1550 | 1550 | 191 | 198 | 720 | 750 | 60 | 82 | * |
11PZS1705 | 1705 | 209 | 198 | 720 | 750 | 65.5 | 90 | ★ |
12PZS1860 | 1860 | 227 | 198 | 720 | 750 | 71 | 97.5 | ★ |
